उत्पत्ति के प्लेस:
शेनझेन, चीन
ब्रांड नाम:
Polcd
प्रमाणन:
RoHS, ISO9001
मॉडल संख्या:
P035M068-आईपीएस
संपर्क करें
वीडियो
वीडियो
वीडियो
वीडियो

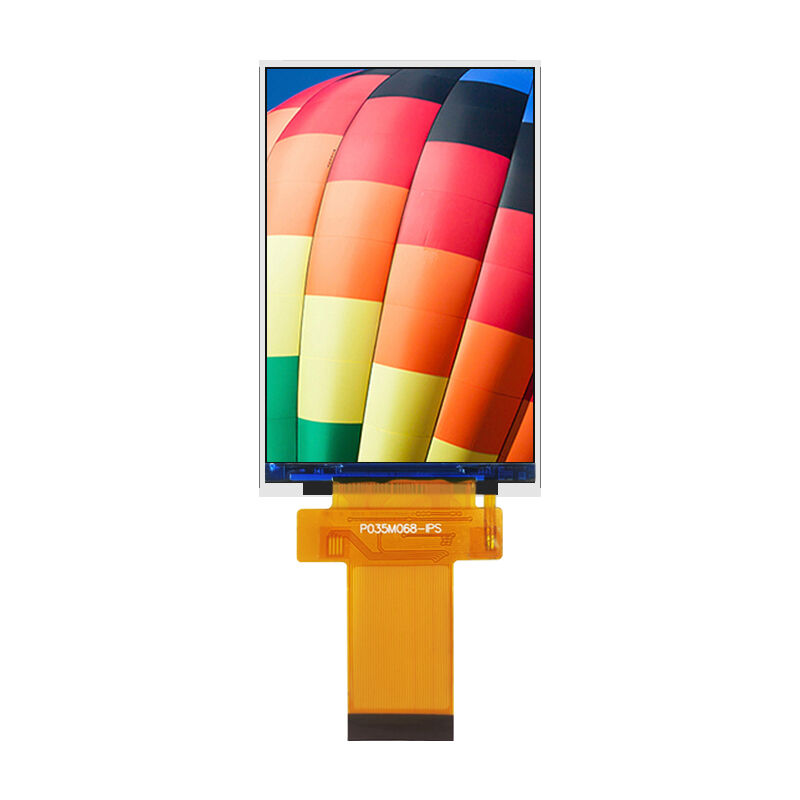

| Model No. | P035M068-IPS |
| Screen Size | 3.5 inch |
| Number of Pixel | 320RGB(H)x480(V) |
| Pin | 40 pin |
| Display area | 48.96(H)x73.44(V)mm |
| Pixel pitch | 51(H)x153(V)um |
| Outline Dimension | 54.50x84.71x2.10mm |
| Pixel arrangement | RGB Vertical Stripe |
| Display mode | Normally Black |
| Viewing Direction(eye) | ALL |
| Display Color | 262K |
| Luminance(cd/m2) | 300 nit |
| Contrast Ratio | 700:1 |
| Interface | 18BIT RGB |
| Back-light | LED Side-light type |
| Drive IC | ILI9488 |
| Operation Temperature | -20~70 ℃ |
| Storage Temperature | -30~80 ℃ |
Application
A 3.5 inch TFT LCD can be used in a variety of applications, including:
Portable electronic devices: A 3.5 inch TFT LCD is commonly used in portable electronic devices such as digital cameras, handheld gaming devices, portable media players, and GPS devices.
Industrial equipment: TFT LCDs are commonly used in industrial equipment such as test and measurement instruments, process control systems, and machine vision systems.
Medical devices: TFT LCDs are used in various medical devices such as patient monitoring systems, ultrasound machines, and medical imaging equipment.
Automotive applications: TFT LCDs are used in automotive applications such as dashboard displays, rearview cameras, and infotainment systems.
Consumer electronics: TFT LCDs are used in a variety of consumer electronics such as smartphones, tablets, and smartwatches.
